Breaking Points
In the following, we would like to show some examples of types of break points and separation options. Usability must be checked on a case-by-case basis. The various types of breaking points are possible on both straight and curved edges.
The basic definition specifications of the “milling” and “scoring” processes must be observed.

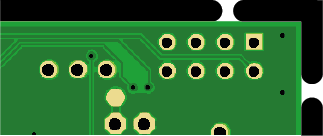

01 – Milled with distance

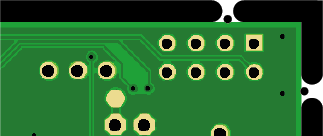

02 – Milled with distance
and intermediate drilling

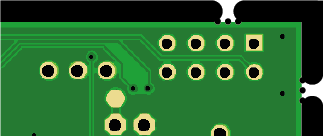

03 – Milled with distance
and 3 intermediate drillings

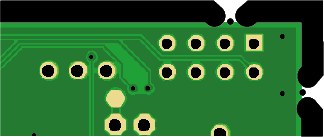

04 – Milled with distance, offset inwards, with drill hole

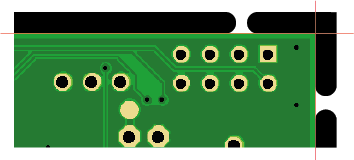

05 – Milled with distance
at the edges

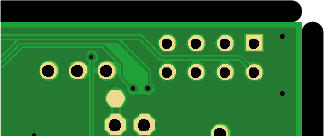

06 – Milled with distance
at the edges and
intermediate drilling

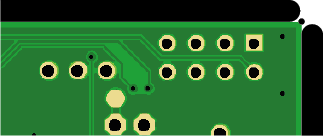

07 – Milled with distance
and scoring lines

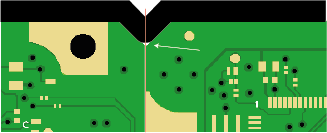

08 – Scored
13 – Mini-PCB
Milling and scoring
14 – Mini-PCB
Scoring
Remark
01 – Remaining pieces remain on the edge
03 – Copper must be moved inwards
04 – Copper must be moved inwards
11 – May result in an unstable panel
